2.1m Radio Telescope

2.1m Radio Telescope

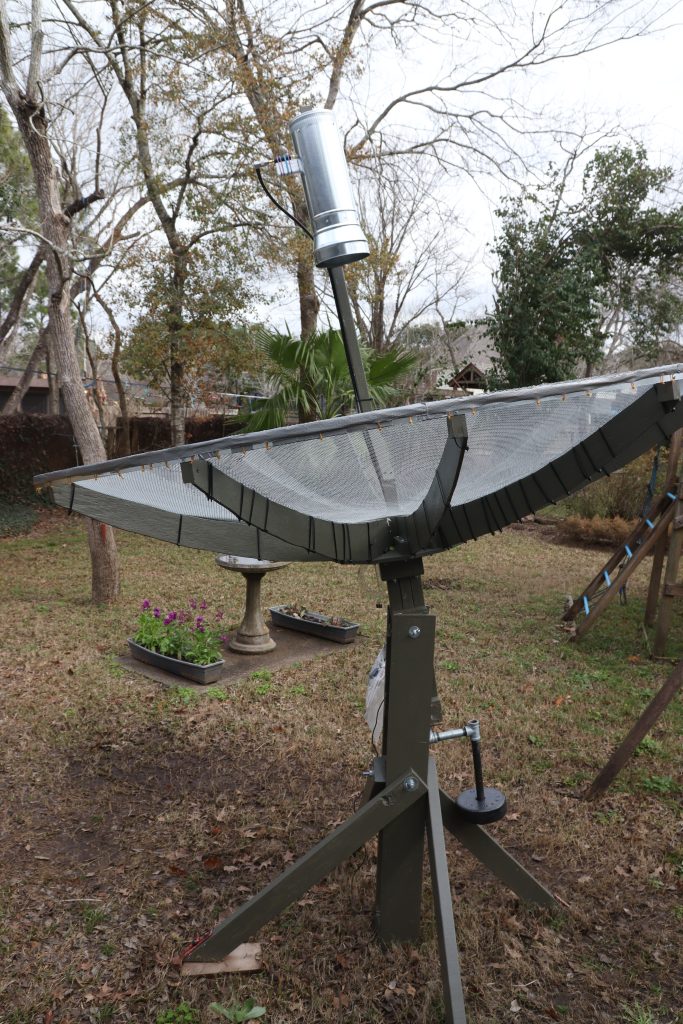

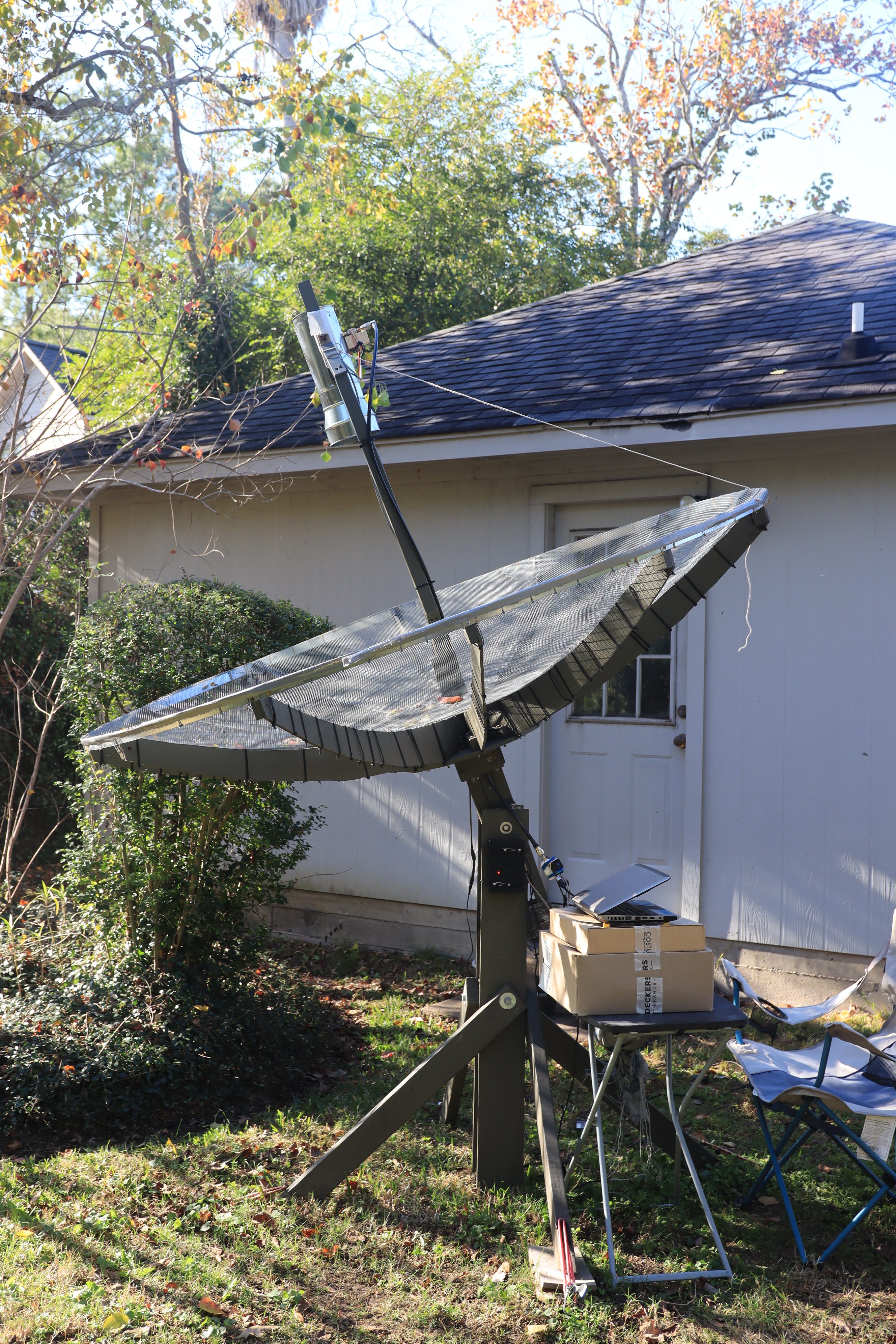

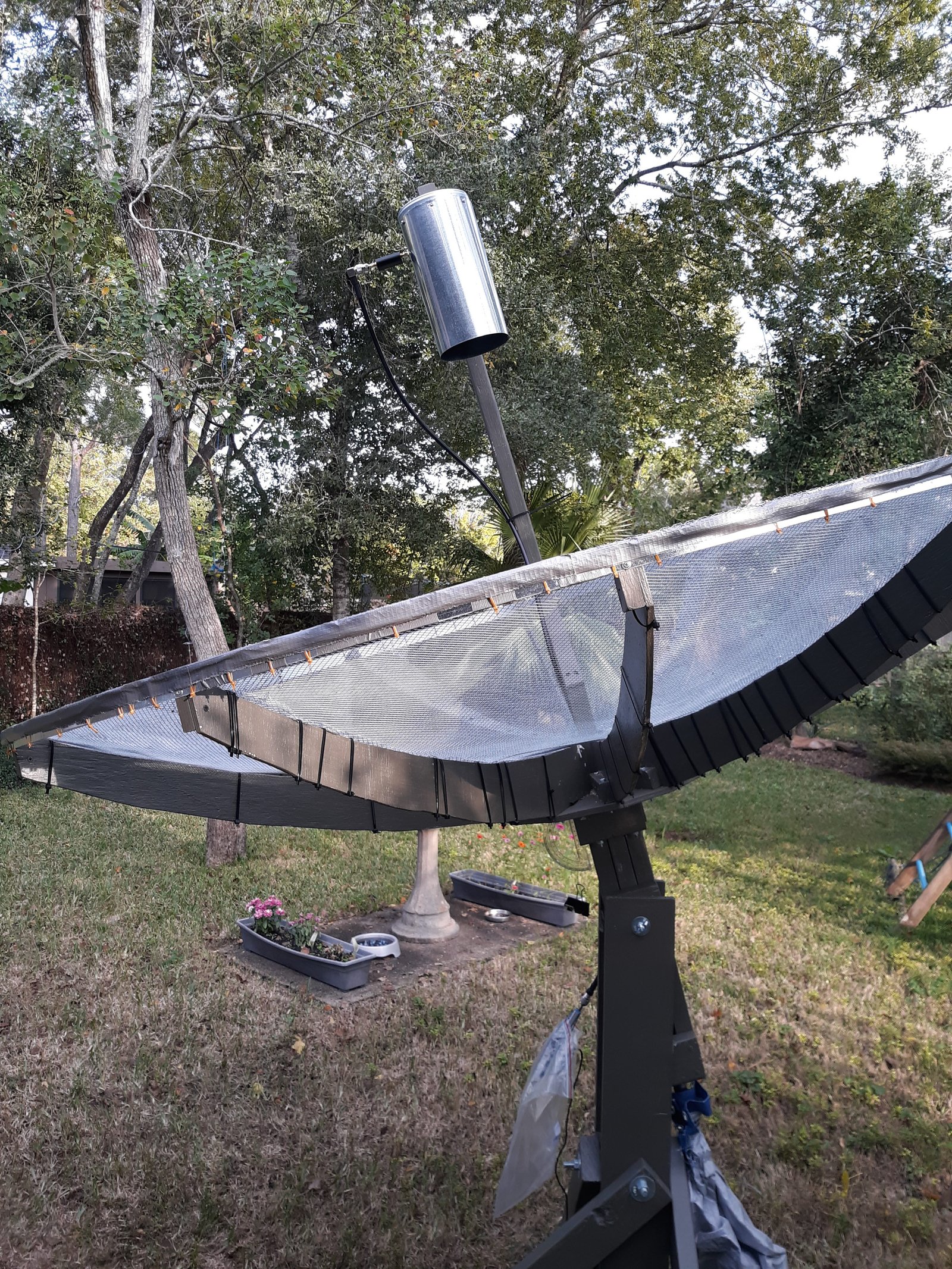

2.1m / 7′ Radio Telescope with Cylindrical Waveguide Antenna (0.722 lambda diameter)

|

21cm (1420MHz) Hydrogen, One 24 hour day

46 degrees Declination

|

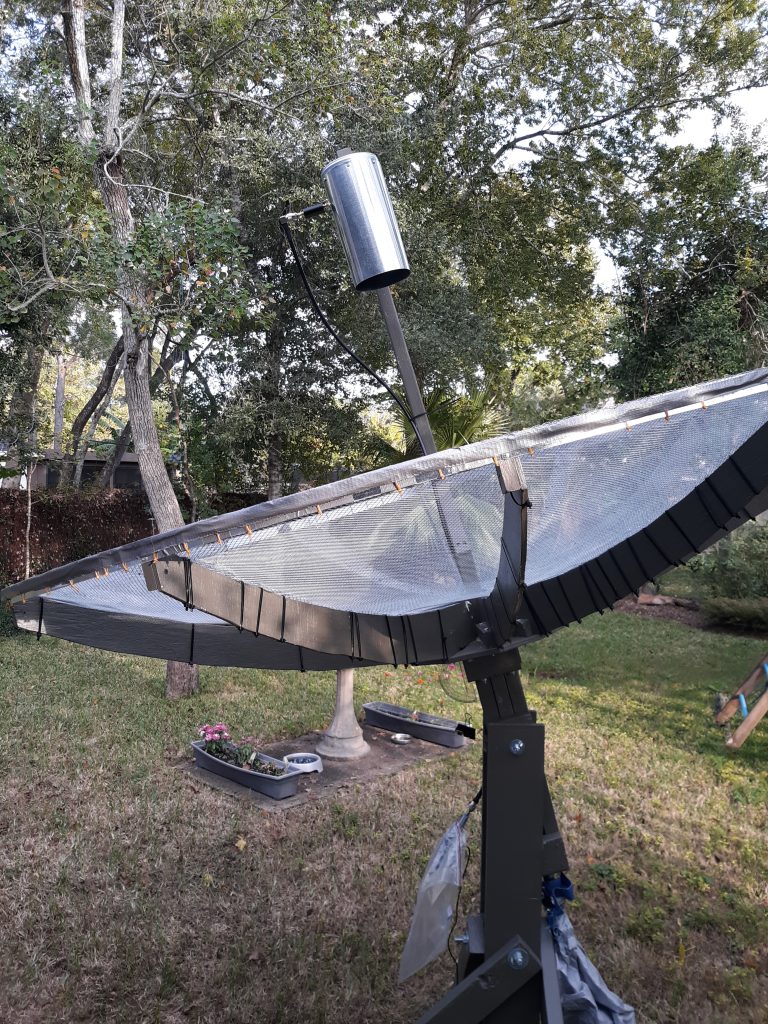

2.1m / 7 ‘ Radio Telescope with Cylindrical Waveguide Antenna (6″ to 7″ Flair, 0.842 lambda diameter)

|

Milky Way 21cm Neutral Hydrogen at DEC 41d 27m and 46d.

Note – humps are indications of Milky Way spiral arms.

Milky Way – Neutral Hydrogen 1420.4058MHz, DEC 41d 27m

|

Milky Way – Neutral Hydrogen 1420.4058MHz, DEC 46d

|

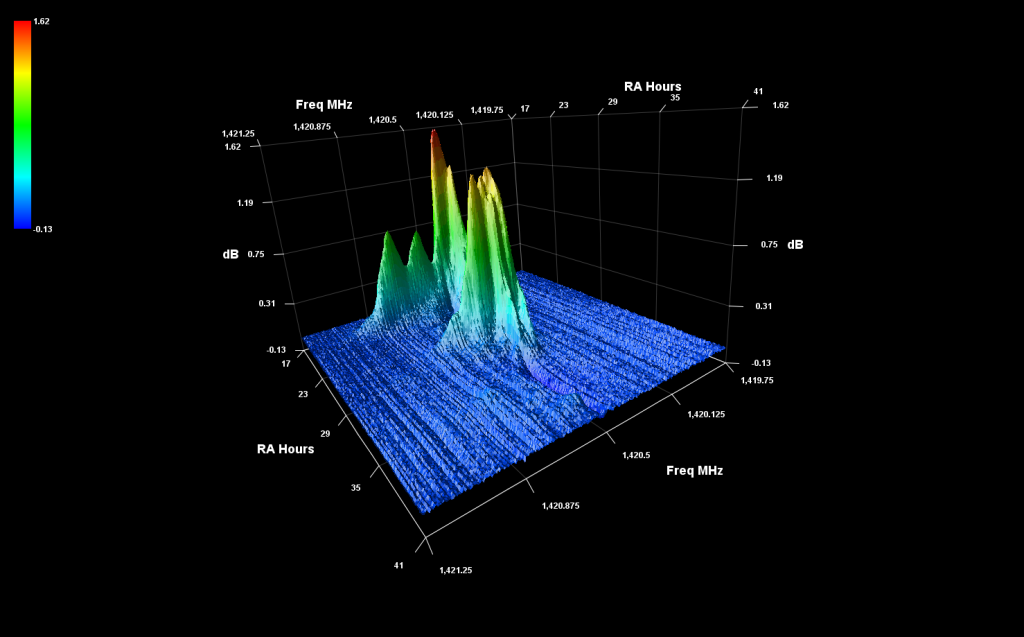

Milky Way – Neutral Hydrogen 1420MHz, 47.5 DEC (46 protractor), 24 hours scan. 3D plot using IFAvg2CSV and Rinearn Graphics software. [12/5/24]
Milky Way – Neutral Hydrogen 1420MHz, 47.5 DEC (46 protractor), 24 hours scan. 3D plot using IFAvg2CSV and Rinearn Graphics software. (Rotated) [12/5/24]

|

1409 MHz Sun Crossing, 4 hours

|

Sun Crossing – 1409MHz, 4800KHz BW

|

Cygnus A and Cygnus X

Cygnus A & Cygnus X – 1409MHz, 1200KHz BW

|

M1 – Crab Nebula and IC443 – Jellyfish Nebula

M1 – Crab Nebula and IC443 – Jellyfish Nebula: 1407MHz 4800KHz BW

|

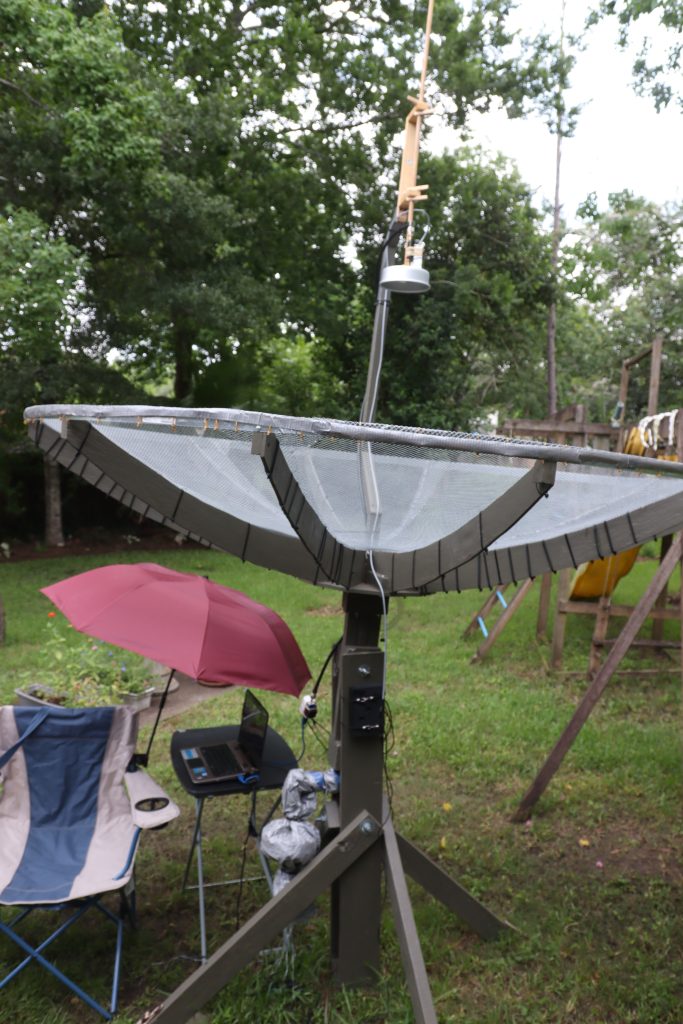

2.1m / 7 ‘ Radio Telescope with Loop Antenna (1 lambda circumference)

|

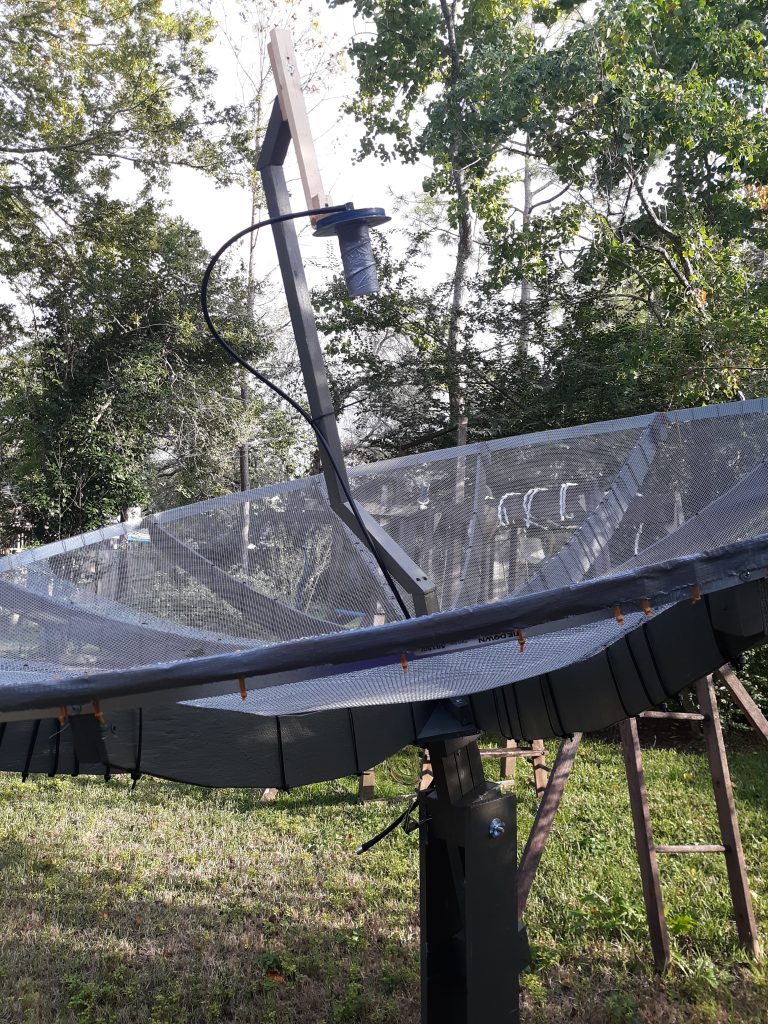

2.1m / 7 ‘ Radio Telescope with Helical Beam Antenna (0.898 lambda circumference)
